AWARD-WINNING LIGHTWEIGHT DESIGN
Engineering Masters strips a part back to the material that carries load and removes the rest. The result is lighter, stiffer where it counts, and built to survive real conditions. Not a lighter drawing. A lighter working part.
ADDITIVE WORLD DESIGN CHALLENGE WINNER 2015 / RUNNER-UP 2018
Topology optimisation, done properly
Topology optimisation finds the ideal distribution of material inside a given space, so the part carries its load with the least mass possible. The method borrows directly from nature.
The principle traces back to Wolff’s Law of bone growth. Bone reinforces itself along the lines of stress it actually experiences and sheds material where it is not needed. A femur is not solid. It is a lattice tuned to the loads a body places on it. Topology optimisation applies the same logic to an engineered part. You define the space, the loads, and the constraints, then the material organises itself along the true load paths.
The output is not tied to one production method. The same result guides fibre placement in a composite, reinforces a load path in a machined or welded bracket, or unlocks a geometry that only additive manufacturing can build. Engineering Masters reads the result and turns it into a part that can actually be made. That is the difference between running the software and engineering the outcome. For the full method, from design space and load cases to the finished part, read how topology optimisation works.
Selected topology work
A closer look at optimised parts, from raw topology result to finished component.
Motorcycle swingarm
A fully topology-optimised swingarm designed for additive manufacture in titanium. The geometry follows the load paths a swingarm actually sees under drive, braking, and cornering, which no hand-drawn design would arrive at. It won the Additive World Design Challenge in 2015.

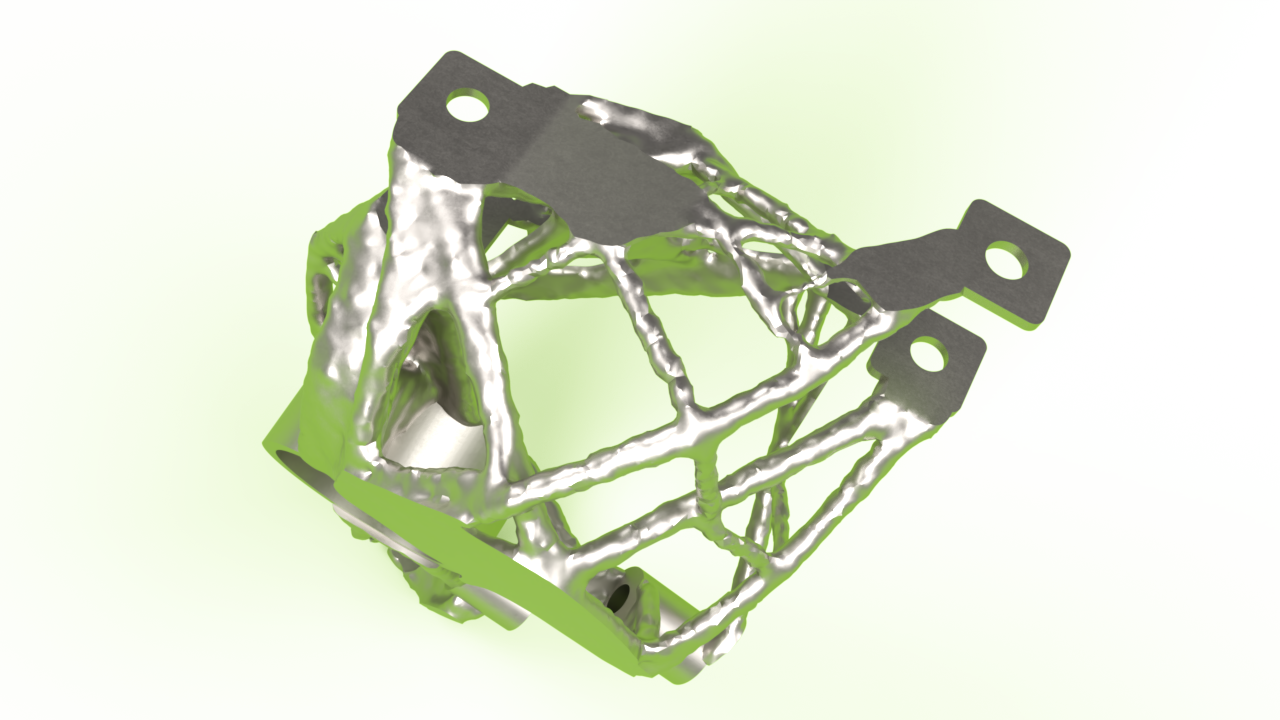

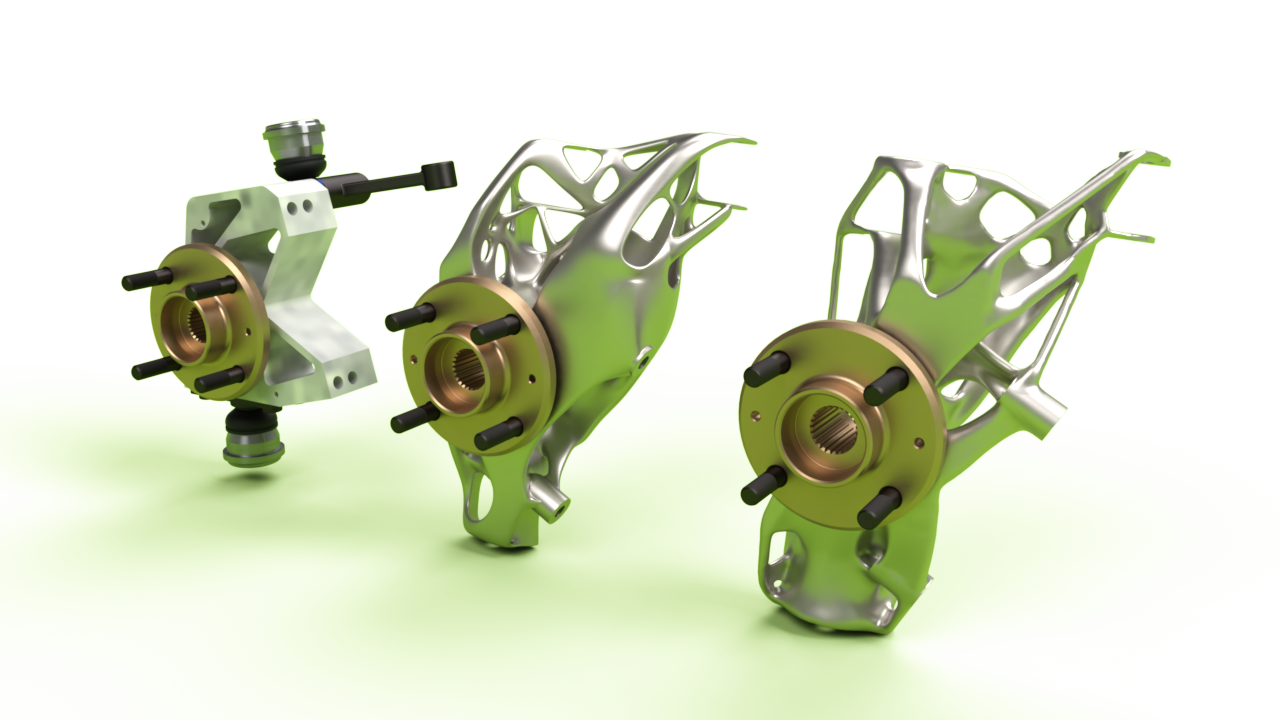

LOTUS ELISE UPRIGHT
A single lightweight console that does the work of several separate parts. Brake lines, brake balance adjuster and the handbrake mechanism are built into the same structure. Fewer parts, less weight, one considered piece.

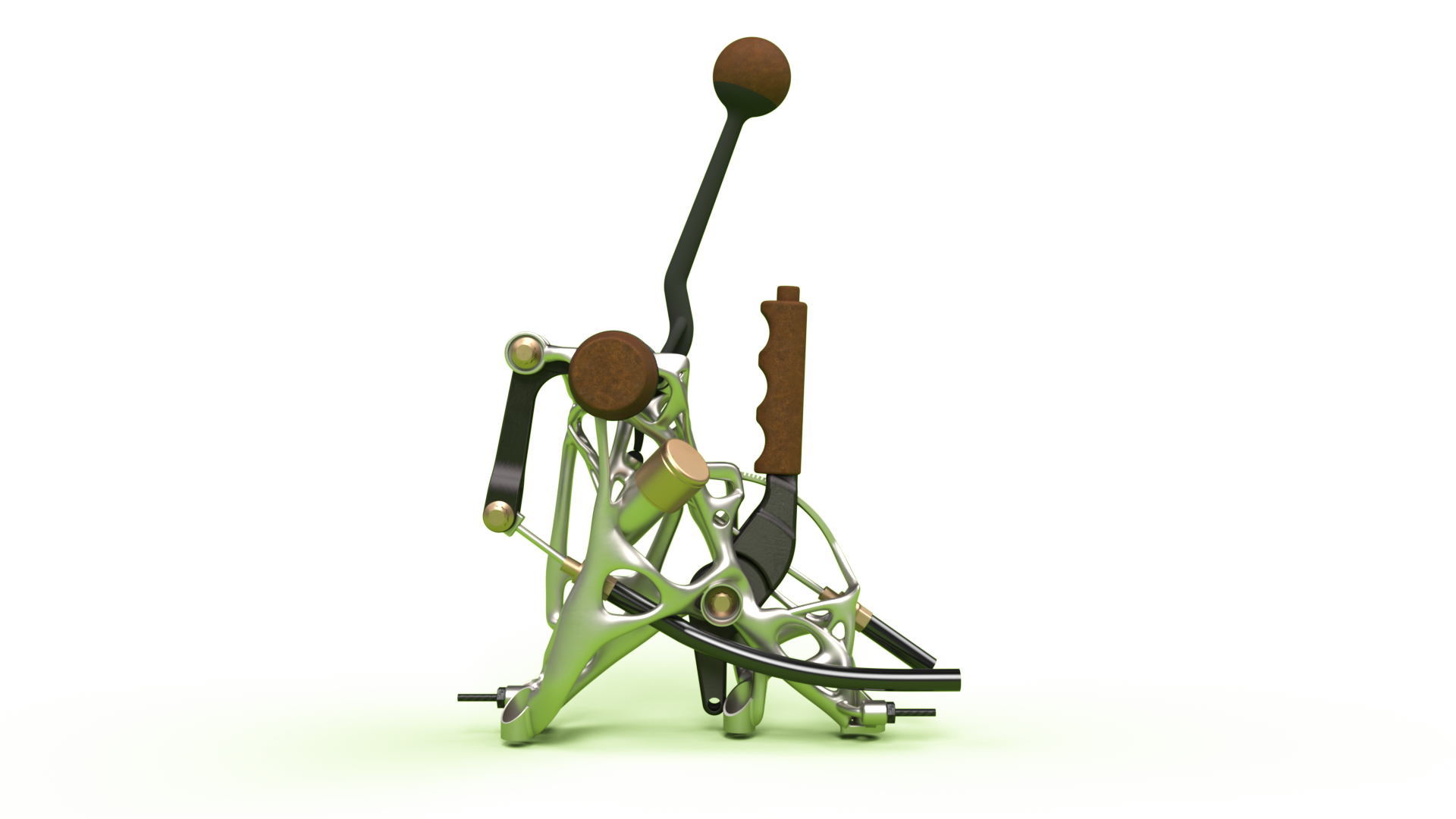

SHIFTER CONSOLE
A single lightweight console that does the work of several separate parts. Brake lines, brake balance adjuster and the handbrake mechanism built into the same structure. The shifter sits exactly where the hand falls, positioned around the driver rather than the packaging. Fewer parts, less weight, one considered piece.
OPTIMISATION RESULT
A raw topology result is a density field, not a manufacturable part. The value is in reading it correctly and translating it into a geometry that can be forged, milled, printed, or laid up in composite. Engineering Masters does the interpretation, not just the simulation. See the full six-step method.
WHO DOES THIS WORK
Lightweight and structural optimisation at Engineering Masters is led by Gilbert Peters, a mechanical engineer who has won the Additive World Design Challenge for topology-optimised design and placed as runner-up three years later.
Engineering Masters is a senior-led mechanical engineering studio in Lent, the Netherlands. Clients work directly with the engineers doing the work, from the first concept through analysis and validation to a physical part that holds up. Topology optimisation is one of the tools in that kit, used alongside FEM, design for manufacturing, and embedded sensing to take a lightweight problem from brief to working hardware.
